Hyundai Sonata: Clutch Pedal. Components and Components Location - Clutch System - Clutch SystemHyundai Sonata: Clutch Pedal. Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Clutch System / Clutch System / Clutch Pedal. Components and Components Location

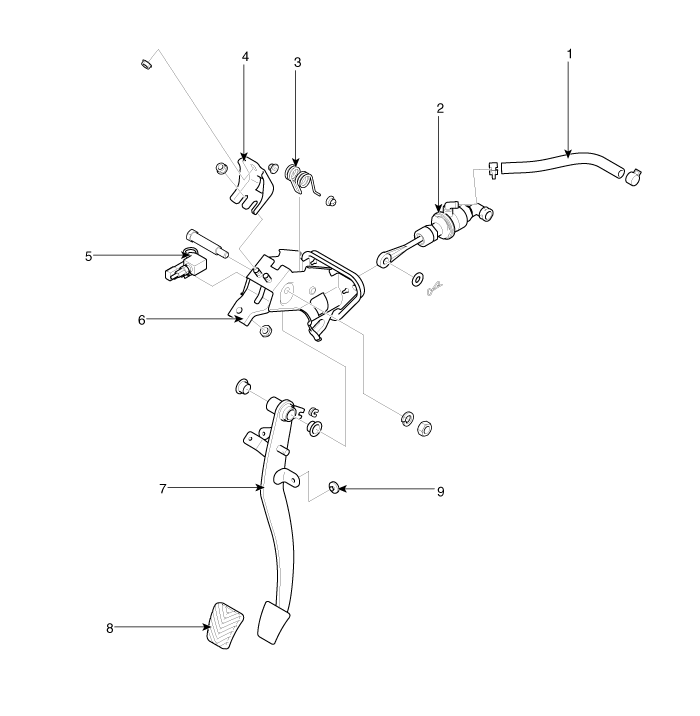

Components

1. Flexibie hose
2. Flexibie
3. Turn over spring
4. Cowl bracket
5. Ignition lock switch
 6. Clutch member assembly
7. Clutch arm
8. Pedal pad
9. Stopper


    Clutch Cover And Disc. Repair procedures
    Removal 1. Remove the transaxle assembly. (Refer to "Manual transaxle system" in MT group) 2. Remove the clutch cover bolts. No ...

    Clutch Pedal. Repair procedures
    Removal Do not spill brake fluid on the vehicle; it may damage the paint if brake fluid does contact the paint, wash it off im ...
