Hyundai Sonata: Interior Trim. Components and Components Location - Interior - Body (Interior and Exterior) - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Interior Trim. Components and Components Location

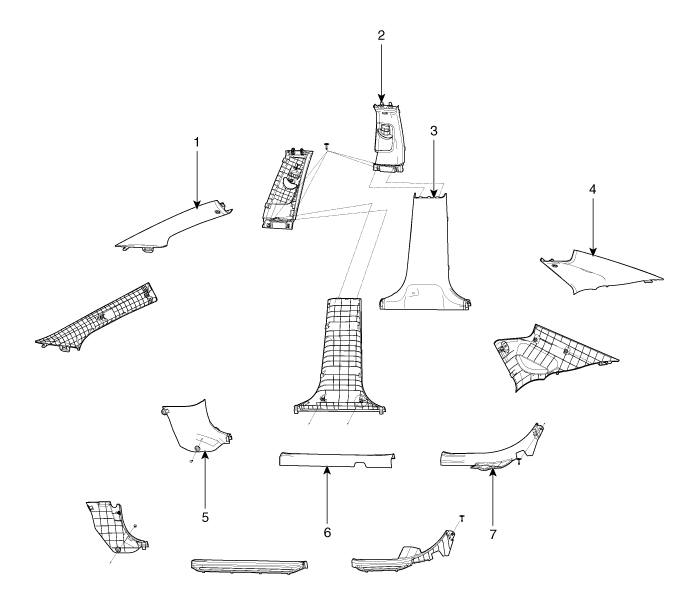

Components

1. Front pillar trim
2. Center pillar upper trim
3. Center pillar lower trim
4. Rear pillar trim
5. Cowl side trim
6. Front door scuff trim
7. Rear door scuff trim
